Production and precision measurement equipment for lithium-ion battery manufacturing. From foil flatness inspection to cell preheating — engineered in Suzhou, delivered worldwide by Abura Technik.
Measurement Equipment Solutions
Product Portfolio
Precision measurement instruments & battery cell production equipment
Measurement Instruments
Foil Sheet Shape Measuring Instrument
CL-1503-C1.5 (4th Generation)
Non-contact laser measurement of wavy edges on copper foil, aluminum foil, separator, and electrode sheets. Dual servo drive with automatic NG judgment and real-time waveform display.
- Accuracy: ±0.04 mm
- Width: 100–1500 mm
- MES integration ready
Online Profile Measuring Instrument
CL-1503-OE1.5B (Inline)
Installed directly on production lines for real-time foil profile monitoring during continuous manufacturing. Links with coating/slitting machines for automatic alarm or shutdown on defect detection.
- Accuracy: ±0.03 mm
- Line speed: 40–300 m/min
- ROI: ~7 months
Electrode Rolling Elongation Rate Tester
Inline Elongation Measurement
Measures electrode foil elongation rate before and after calendering. Laser speed measurement with ten-thousandth-level precision. Synchronized before/after measurement positions.
- Constant tension zone measurement
- Auto data processing & waveform
- Arbitrary position setting
Thickness Gauge
Post-Rolling Thickness Measurement
Precision thickness measurement of electrode sheets after roll pressing. Manual and automatic measurement modes with automatic NG judgment. Visual waveform graphs for intuitive analysis.
- Manual / automatic modes
- Automatic NG detection
- Data export & reporting
Battery Cell Production Equipment
Contact-Type Drawer Preheating Furnace
Cell Preheating Before Hot Pressing
High-capacity preheating furnace for wound battery cells before hot pressing. Servo or pneumatic pitch variation, double-sided drawer design with excellent sealing.
- Up to 640 cells capacity
- Static preheating, energy-saving
- High temperature uniformity
Air-Circulating Tunnel Preheating Furnace
Continuous Cell Preheating
Tunnel-type preheating for continuous production. Double-layer arrangement minimizes floor space. Servo or pneumatic pitch variation with direction reversal.
- Double-layer, small footprint
- Pitch variation + direction reversal
- Stable square tube base
Single-Unit Vacuum Oven
Pre-Filling Moisture Removal
Heats sealed battery cells in a vacuum environment to remove moisture before electrolyte filling. Thick-wall stainless steel body with multi-sided annular heating.
- High vacuum environment
- Multi-sided 3D heating
- Interlayer heat insulation
Flagship Product
Foil Sheet Shape
Measuring Instrument

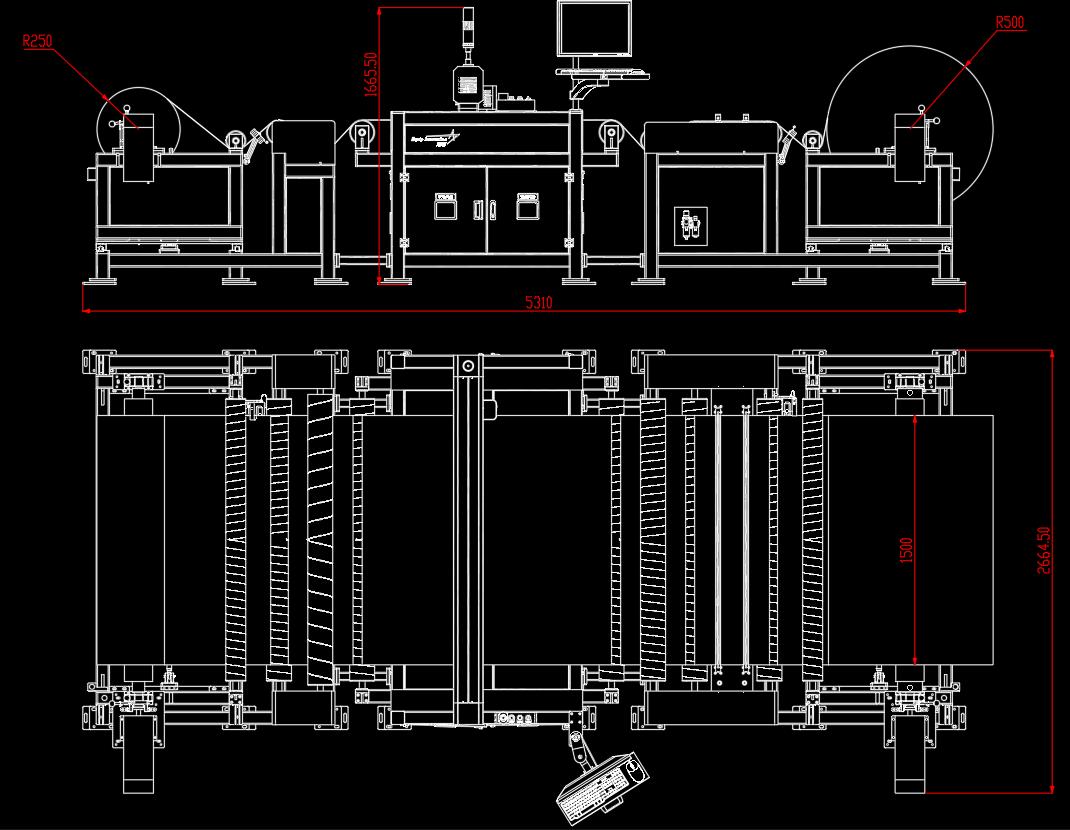

4th generation non-contact laser measurement system for detecting wavy edges on metallic foils and separators used in lithium-ion battery production.
The laser sensor performs equidistant sampling across the entire stroke, compares deviation against a reference line, and automatically determines pass/fail status.
Technical Specifications
| Model | CL-1503-C1.5 (4th Generation) |
|---|---|
| Substrates | Copper foil, aluminum foil, separator, aluminum-plastic film, electrode sheet |
| Thickness Range | 0.002 – 0.18 mm |
| Width Range | 100 – 1500 mm |
| Measurement Method | Dynamic scanning, non-contact laser |
| Laser Accuracy | ±0.04 mm |
| Measurement Range | ±20 mm reference position |
| Scan Speed | 0 – 5 m/min (adjustable) |
| Tension Control | 10 – 300 N |
| Guide Roller Finish | Mirror-level, Ra ≤ 0.8 µm, anodized aluminum |
| Max Roll Diameter | ≤ Φ800 mm |
| Dimensions (L×W×H) | 5381 × 2300 × 1707 mm |
| Weight | Approx. 2000 kg |
| Power Supply | AC 380±10% V, 50Hz, ≤ 5.0 kW |
| Control System | 17" industrial PC, Siemens PLC, MES-ready |
| Availability | ≥ 99.5% |
Online Profile
Measuring Instrument
Installed on foil forming, slitting, carbon coating, or coating machines for real-time profile measurement during continuous production. Multiple laser displacement sensors scan perpendicular to the tape running direction.
Can link with production equipment to trigger alarms or shutdowns, reducing scrap from profile defects such as wrinkling, diagonal lines, edge collapse, and wavy edges.
Technical Specifications
| Model | CL-1503-OE1.5B (Inline) |
|---|---|
| Installation | Foil forming, slitting, carbon coating, coating machines |
| Detected Objects | Separator, copper foil, aluminum foil, electrode sheet |
| Measurement Method | Dynamic scanning, non-contact, perpendicular to tape |
| Scan Speed | 10 – 80 mm/s |
| Laser Accuracy | ±0.03 mm |
| Repeatability | 0.02 mm |
| Detection Range | ±20 mm |
| Adapted Width | 200 – 1800 mm |
| Production Speed | 40 – 300 m/min |
| Module Dimensions | L1700 × W250 × H355 mm (~100 kg) |
| Power Supply | AC 220±10% V, 50Hz, ≤ 1.5 kW |
| Calibration Cycle | 6 months |
| Equipment Linkage | Alarm / shutdown on defect (optional) |
| Data Output | Real-time waveform, roll profile report, MES upload |
Defects Prevented
Application in Battery Production
Where Kuichuang equipment fits in the lithium-ion battery manufacturing process
